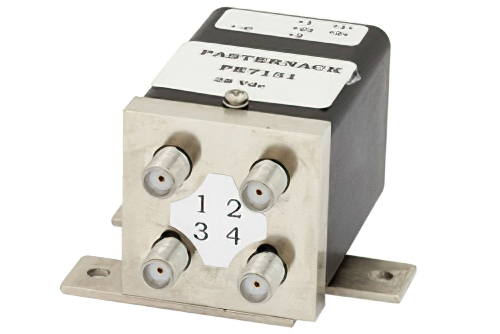

Transfer Electromechanical Relay Latching Switch, DC to 18 GHz, up to 85W, 28V Indicators, Self Cut Off, SMA

Product ID: PE7151

Pricing

QuantityPrice
1-1$720.12
2-4$676.91
5-9$640.91
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 5
Shipping Truck
Same-Day Shipping!
Order in the next hours!
Product discontinued when current inventory is depleted.
Replaced with PE71S6401.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignTransfer
Minimum FrequencyDC
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum Input Power (CW)35 Watts
Maximum VSWR1.5:1
Maximum Insertion Loss0.5 dB
Minimum Isolation60 dB

Description

Transfer Electromechanical Relay Latching Switch, DC to 18 GHz, up to 85W, 28V Indicators, Self Cut Off, SMA

PE7151 electromechanical RF relay switch from Pasternack is a Transfer design. Our Transfer electromechanical RF switch uses SMA connectors at 50 Ohm. This SMA RF relay Transfer switch has a maximum frequency of 18 GHz and maximum power of 35 Watts. The Pasternack radio frequency Transfer SMA electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage 175 and switching speed of 15ms.

SMA Transfer electro mechanical RF relay switch features Indicators, Self Cut Off with an isolation minimum of 60 dB. Transfer electromechanical relay radio frequency switch PE7151 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Transfer SMA coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
