SMA to 7/16 DIN Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

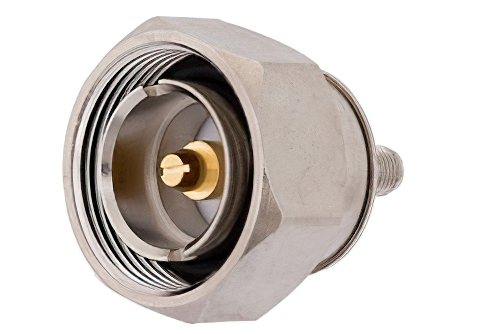

SMA Female to 7/16 DIN Male Adapter

Product ID: PE9412
SMA Female to 7/16 DIN Male Adapter

Image Views:  SMA Female to 7/16 DIN Male Adapter high resolution
Zoom


Click for:PE9412 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE91175

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMA Female to 7/16 DIN Male Adapter

SMA adapter PE9412 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to 7/16 DIN adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications.

SMA female to 7/16 DIN male adapter is one of the many RF components that ship same day as they are ordered. PE9412 female SMA to male 7/16 DIN adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to male 7/16 DIN adapter PE9412 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to 7/16 DIN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
