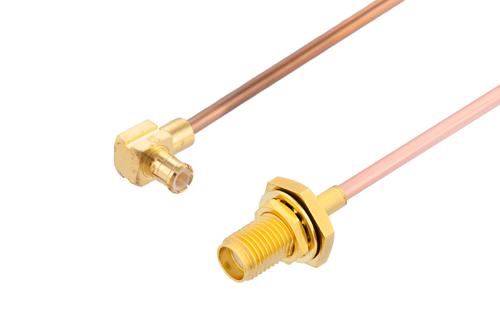

Radio frequency assembly SMA female bulkhead to MCX plug right angle cable using RG405 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female bulkhead to MCX plug right angle cable using RG405 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to MCX cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA bulkhead cable connection on one end and a right angle MCX cable connection on the other. Our SMA to right angle MCX cable assembly has a female gender on end 1 and a plug on end 2. PE3C3797 can also be known as a SMA jack to right angle MCX male cable assembly and will be shipped the same day as it is purchased. This semi-rigid RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.05-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. The semi-rigid RF cable has a between series connection. Our bulkhead SMA female to right angle MCX plug cable has a maximum VSWR of 1.5:1.
SMA jack to MCX male cable assembly PE3C3797 is built with RG405 which is a semi-rigid coax type. The Pasternack semi-rigid SMA cable assembly is manufactured with SMA to right angle MCX cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C3797 can also be used in the other direction and will be a right angle MCX plug to SMA female bulkhead cable assembly if the opposite connectivity is required.
SMA jack bulkhead to MCX right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to MCX cable assembly for quick shipment worldwide. Variations of SMA and MCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to MCX RF cable assembly as per your requirements.
