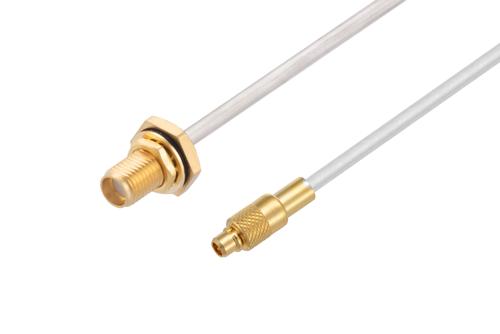

Radio frequency assembly SMA female bulkhead to MMCX plug cable using tinned RG405 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female bulkhead to MMCX plug cable using tinned RG405 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to MMCX cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA bulkhead cable connection on one end and a MMCX cable connection on the other. Our SMA to MMCX cable assembly has a female gender on end 1 and a plug on end 2. PE3W19144 can also be known as a SMA jack to MMCX male cable assembly and will be shipped the same day as it is purchased. This semi-rigid RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
The minimum bend radius for this cable is 0.05 inches, allowing for a single bend without damaging the cable. This radio frequency cable assembly can withstand temperatures ranging from -55 to 125 degrees C. The semi-rigid RF cable has a between series connection. Our bulkhead SMA female to MMCX plug cable has a maximum VSWR of 1.4:1.
SMA jack to MMCX male cable assembly PE3W19144 is built with RG405 tinned which is a semi-rigid coax type. The Pasternack semi-rigid SMA cable assembly is manufactured with SMA to MMCX cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the solder/solder attachment method and a stainless steel body with gold plating, while the other has the solder attachment method and a brass body with gold plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W19144 can also be used in the other direction and will be a MMCX plug to SMA female bulkhead cable assembly if the opposite connectivity is required.
SMA jack bulkhead to MMCX male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to MMCX cable assembly for quick shipment worldwide. Variations of SMA and MMCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to MMCX RF cable assembly as per your requirements.
