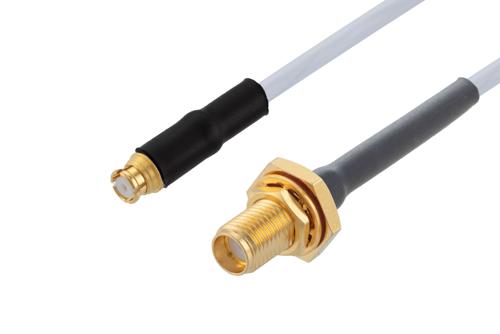

Radio frequency assembly SMA female bulkhead to push-on SMP female cable using RG196 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female bulkhead to push-on SMP female cable using RG196 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to SMP cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA bulkhead cable connection on one end and a SMP cable connection on the other. Our SMA to SMP cable assembly has a female gender on end 1 and a female on end 2. PE3W10219 can also be known as a SMA jack to SMP jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE3W10219 RF cable has a PTFE jacket of 0.080-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 155 degrees C. The flexible RF cable has a between series connection. Our bulkhead SMA female to SMP female cable has a maximum VSWR of 1.4:1.
SMA jack to SMP jack cable assembly PE3W10219 is built with RG196 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to SMP cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with gold plating, while the other has the solder/solder attachment method and a beryllium copper body with gold plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W10219 can also be used in the other direction and will be a SMP female to SMA female bulkhead cable assembly if the opposite connectivity is required.
SMA jack bulkhead to SMP jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to SMP cable assembly for quick shipment worldwide. Variations of SMA and SMP cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to SMP RF cable assembly as per your requirements.
