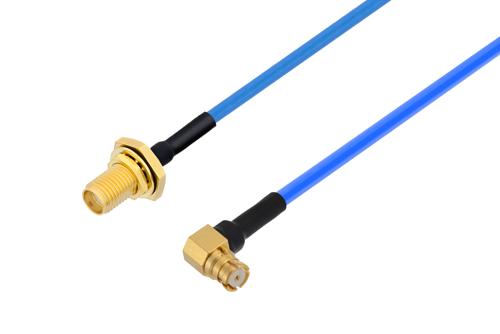

Radio frequency assembly SMA female bulkhead to SMP female right angle cable using PE-P086 coax with heatshrink and 90 deg. clock from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female bulkhead to SMP female right angle cable using PE-P086 coax with heatshrink and 90 deg. clock, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to SMP cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA bulkhead cable connection on one end and a right angle SMP cable connection on the other. Our SMA to right angle SMP cable assembly has a female gender on end 1 and a female on end 2. PE3C5193/SP1 can also be known as a SMA jack to right angle SMP jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.5-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C5193/SP1 RF cable has a FEP jacket of 0.104-inch diameter. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 70% and a minimum RF shielding of 110 dB. Our bulkhead SMA female to right angle SMP female cable has a maximum VSWR of 1.4:1.
SMA jack to SMP jack cable assembly PE3C5193/SP1 is built with PE-P086 which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to right angle SMP cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a solder/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C5193/SP1 can also be used in the other direction and will be a right angle SMP female to SMA female bulkhead cable assembly if the opposite connectivity is required.
SMA jack bulkhead to SMP right angle jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to SMP cable assembly for quick shipment worldwide. Variations of SMA and SMP cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to SMP RF cable assembly as per your requirements.
