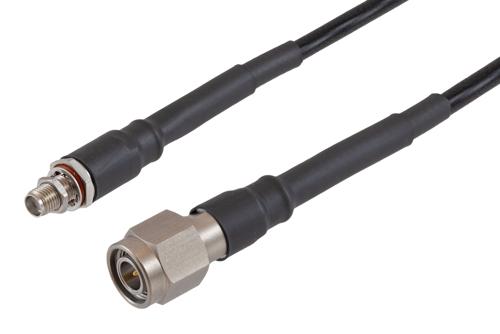

Radio frequency assembly SMA female bulkhead to TNC male low loss space cable using PE-R200LL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female bulkhead to TNC male low loss space cable using PE-R200LL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to TNC cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss space cable assembly is built with a SMA bulkhead cable connection on one end and a TNC cable connection on the other. Our low loss space SMA to TNC cable assembly has a female gender on end 1 and a male on end 2. PE3C100015 can also be known as a low loss space SMA jack to TNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.562-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
SMA low loss space cable assemblies from Pasternack are ideal for applications including vacuum environments, low earth orbit (leo), space (exploration, launches, maintenance, stations), ground systems and satellites. The minimum bend radius for this cable is 1.08 inches, allowing for a single bend without damaging the cable. Our PE3C100015 RF cable has a ETFE jacket of 0.216-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -65 to 150 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 82% and a minimum RF shielding of 100 dB. Our bulkhead SMA female to TNC male cable has a maximum VSWR of 1.4:1.
SMA jack to TNC plug cable assembly PE3C100015 is built with PE-R200LL which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to TNC cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a stainless steel body with passivated plating. Additional dimensions, specifications and CAD drawings for this low loss space RF cable are available on our downloadable PDF datasheet. PE3C100015 can also be used in the other direction and will be a TNC male to SMA female bulkhead cable assembly if the opposite connectivity is required.
Low loss space SMA jack bulkhead to TNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to TNC cable assembly for quick shipment worldwide. Variations of SMA and TNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to TNC low loss space RF cable assembly as per your requirements.
