SMA to D-Sub Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

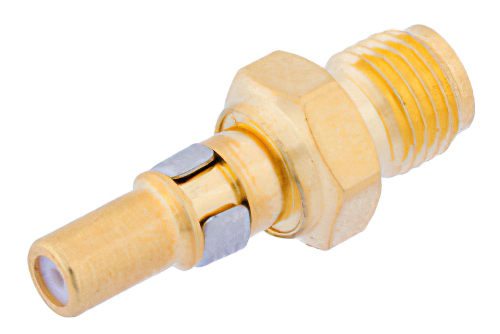

SMA Female to D-Sub Plug Adapter

Product ID: PE9422
SMA Female to D-Sub Plug Adapter

Image Views:  SMA Female to D-Sub Plug Adapter high resolution
Zoom


Click for:PE9422 Datasheet
Click for:PE9422 RoHS Cert
Click for:PE9422 REACH Cert
DISCONTINUED PRODUCT
Remaining Quantity Available: 1
Pricing Table
QUANTITYPRICE
1-24$31.48
25-49$29.28
50-99$27.07
100-249$25.18
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2D-Sub
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Gold


SMA Female to D-Sub Plug Adapter

SMA adapter PE9422 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to D-Sub adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications.

SMA female to D-Sub plug adapter is one of the many RF components that ship same day as they are ordered. PE9422 female SMA to plug D-Sub adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to plug D-Sub adapter PE9422 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to D-Sub radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
