HMCX32 1.2 Plug to SMA Female Cable Assemblies

Check out our new RF calculators & conversion tools...

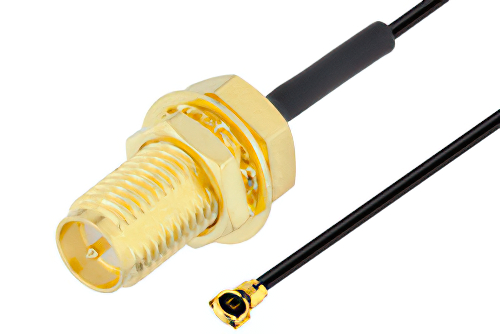

Reverse Polarity SMA Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

Product ID: PE3CA1022
Reverse Polarity SMA Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

Image Views:  Reverse Polarity SMA Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS high resolution
Zoom


Click for:PE3CA1022 Datasheet
Click for:PE3CA1022 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
3 in.6 in.12 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2HMCX32 1.2
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-81mm
RF Cable Type0.81mm
RF Cable Impedance50


Reverse Polarity SMA Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

PE3CA1022 is a reverse polarity SMA female bulkhead to HMCX32 1.2 plug cable using 0.81mm coax. This Pasternack reverse polarity SMA female bulkhead to HMCX32 1.2 plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm HMCX32 1.2 for connector 2.

Our reverse polarity female SMA bulkhead to plug HMCX32 1.2 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1022 SMA reverse polarity female bulkhead to HMCX32 1.2 plug cable assembly is constructed with 0.81mm coax and the maximum VSWR is 1.35:1.
