SMA to HN Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

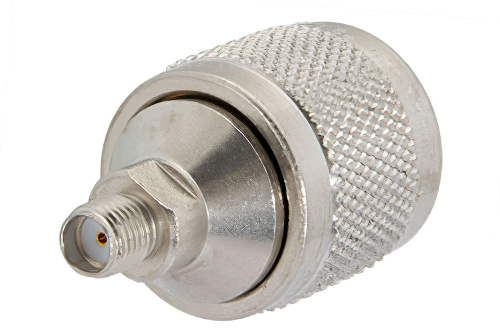

SMA Female to HN Male Adapter

Product ID: PE9253
SMA Female to HN Male Adapter

Image Views:  SMA Female to HN Male Adapter high resolution
Zoom


Click for:PE9253 Datasheet
Click for:PE9253 RoHS Cert
Click for:PE9253 REACH Cert
Available Quantity: 322
Pricing Table
QUANTITYPRICE
1-24$80.42
25-49$76.40
50-99$72.38
100-249$69.16
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2HN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max4 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMA Female to HN Male Adapter

SMA adapter PE9253 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to HN adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 4 GHz.

SMA female to HN male adapter is one of the many RF components that ship same day as they are ordered. PE9253 female SMA to male HN adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to male HN adapter PE9253 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to HN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
