SMA to Mini SMP Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

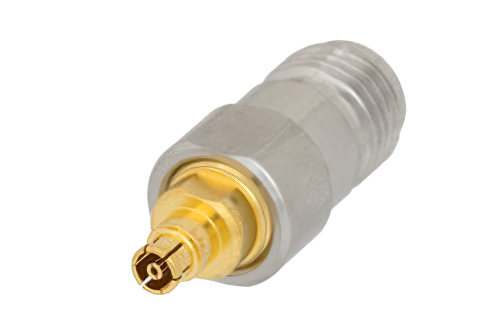

SMA Female to Mini SMP Female Adapter

Product ID: PE91301
SMA Female to Mini SMP Female Adapter


Image Views:  SMA Female to Mini SMP Female Adapter high resolution
Zoomalternate image

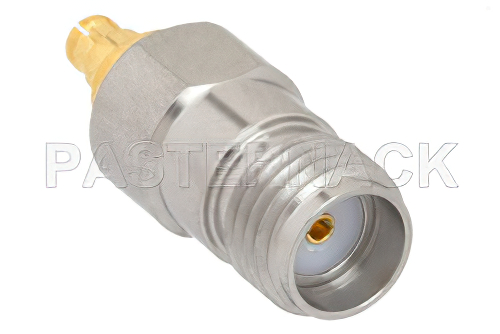

View 2


Click for:PE91301 Datasheet
Click for:PE91301 RoHS Cert
Click for:PE91301 REACH Cert
Available Quantity: 32
Pricing Table
QUANTITYPRICE
1-24$86.48
25-49$80.43
50-99$74.37
100-249$69.18
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2Mini SMP
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None
Connector Body Material 2Beryllium Copper
Connector Body Plating 2Gold


SMA Female to Mini SMP Female Adapter

SMA adapter PE91301 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to Mini SMP adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

SMA female to Mini SMP female adapter is one of the many RF components that ship same day as they are ordered. PE91301 female SMA to female Mini SMP adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to female Mini SMP adapter PE91301 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to Mini SMP radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
