SMA to MMBX Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

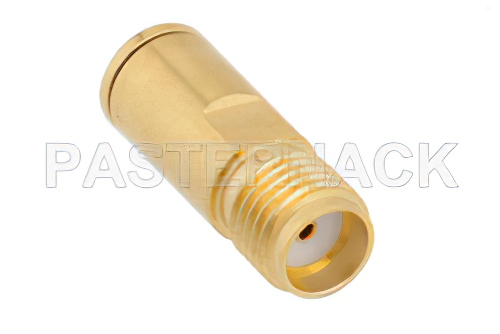

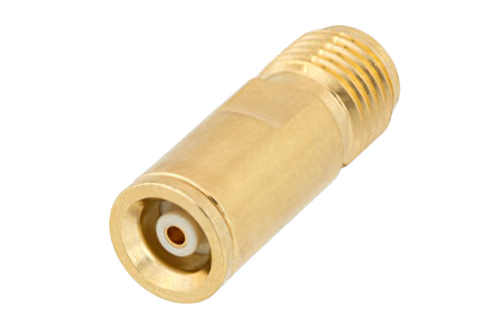

SMA Female to MMBX Jack Snap-On Adapter, With Female Center Contact

Product ID: PE91363
SMA Female to MMBX Jack Snap-On Adapter, With Female Center Contact


Image Views:  SMA Female to MMBX Jack Snap-On Adapter, With Female Center Contact high resolution
Zoomalternate image
View 2


Click for:PE91363 Datasheet
Click for:PE91363 RoHS Cert
Click for:PE91363 REACH Cert
Available Quantity: 30
Pricing Table
QUANTITYPRICE
1-9$170.57
10-24$162.04
25-49$153.51
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2MMBX
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max12.4 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Gold
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Gold


SMA Female to MMBX Jack Snap-On Adapter, With Female Center Contact

SMA adapter PE91363 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to MMBX adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 12.4 GHz.

SMA female to MMBX jack adapter is one of the many RF components that ship same day as they are ordered. PE91363 female SMA to jack MMBX adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to jack MMBX adapter PE91363 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This with female center contact SMA to MMBX radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
