SMA Female to Type N Female Cable Assemblies

Check out our new RF calculators & conversion tools...

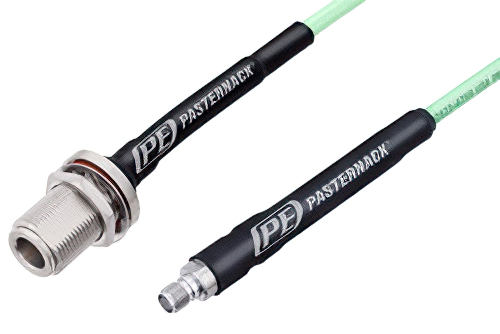

SMA Female to N Female Bulkhead Low Loss Cable Using PE-P142LL Coax, RoHS

Product ID: PE3C3159
SMA Female to N Female Bulkhead Low Loss Cable Using PE-P142LL Coax, RoHS

Image Views:  SMA Female to N Female Bulkhead Low Loss Cable Using PE-P142LL Coax, RoHS high resolution
Zoom


Click for:PE3C3159 Datasheet
Click for:PE3C3159 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberPE-P142LL
RF Cable TypePE-P142LL
RF Cable Impedance50


SMA Female to N Female Bulkhead Low Loss Cable Using PE-P142LL Coax, RoHS

PE3C3159 is a SMA female to type N female bulkhead cable using PE-P142LL coax. This Pasternack SMA female to type N female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm N type for connector 2.

Our female SMA to female type N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3159 SMA female to N type female bulkhead cable assembly is constructed with PE-P142LL coax and the maximum VSWR is 1.4:1.
