SMA Female to N Male Precision Cable Using PE-P141 Coax, RoHS

Product ID: PE356

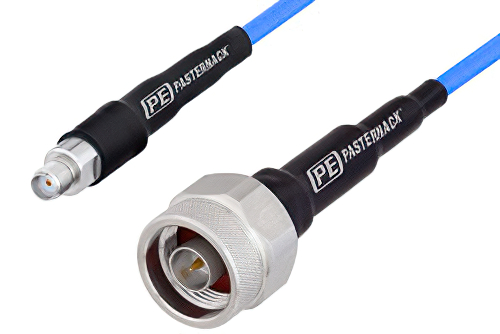

SMA Female to N Male Precision Cable Using PE-P141 Coax, RoHS

Image Views:  SMA Female to N Male Precision Cable Using PE-P141 Coax, RoHS high resolution
Zoom


Click for:PE356 Datasheet
Click for:PE356 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.120 in.50 cm.100 cm.150 cm.200 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141
RF Cable TypePE-P141
RF Cable Impedance50


SMA Female to N Male Cable Using PE-P141 Coax, RoHS

PE356 is a SMA female to type N male cable using PE-P141 coax. This Pasternack SMA female to type N male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our female SMA to male N type cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE356 SMA female to type N male cable assembly is constructed with PE-P141 coax and the maximum VSWR is 1.4:1.
