Bulkhead Mount SMA Female to N Male Adapter

Product ID: PE9551

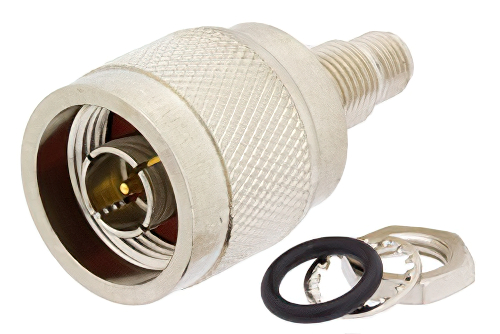

Bulkhead Mount SMA Female to N Male Adapter

Image Views:  Bulkhead Mount SMA Female to N Male Adapter high resolution
Zoom


Click for:PE9551 Datasheet
Click for:PE9551 RoHS Cert
Click for:PE9551 REACH Cert
Available Quantity: 48
Pricing Table
QUANTITYPRICE
1-24$67.94
25-49$64.54
50-99$61.15
100-249$58.43
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max11 GHz
Adapter Body StyleStraight
Connector Mount Method 1Bulkhead
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


Bulkhead Mount SMA Female to N Male Adapter

SMA adapter PE9551 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to type N adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 11 GHz.

SMA female to N type male adapter is one of the many RF components that ship same day as they are ordered. PE9551 female SMA to male type N adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our female SMA to male type N adapter PE9551 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to N type radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
