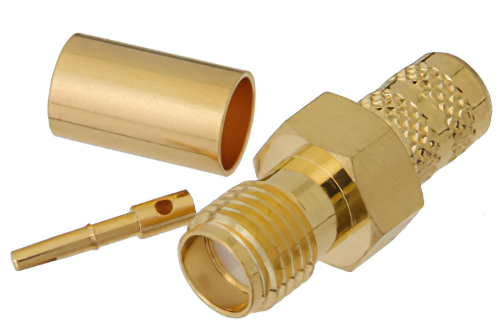

PE44639 SMA female coaxial connector has an interface type of SMA female, which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables, and has an impedance of 50 Ohms. Pasternack’s SMA female connector uses crimp/solder as an attachment method. Our female SMA coaxial connector provides a maximum frequency of 12.4 GHz. This SMA female RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack SMA female coaxial connector has a PTFE dielectric type. Pasternack’s SMA coaxial connector has a brass body with gold plating. Our PE44639 SMA connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE44639 SMA connector operates at a temperature range of -65 to 165 deg C. This SMA connector has a gold inner contact plating. Our SMA female connector has a length of 0.97 inches, a width of 0.312 inches, and a weight of 0.012 lbs.
This Pasternack female SMA connector will ship the same business day as purchased. Our SMA female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
