Standard SMA 1 Watt Dummy Loads

Check out our new RF calculators & conversion tools...

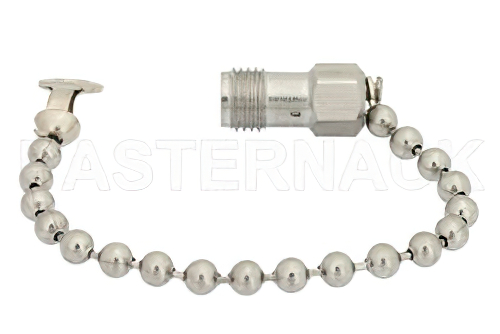

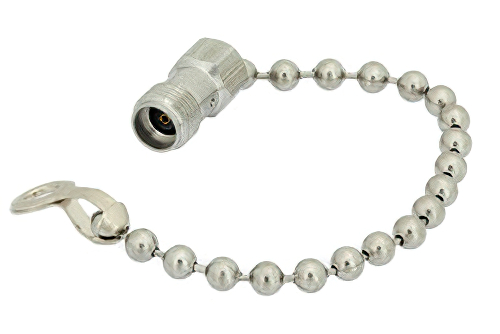

1 Watt RF Load With Chain Up to 18 GHz With SMA Female Input Passivated Stainless Steel

Product ID: PE6074
1 Watt RF Load With Chain Up to 18 GHz With SMA Female Input Passivated Stainless Steel


Image Views:  1 Watt RF Load With Chain Up to 18 GHz With SMA Female Input Passivated Stainless Steel high resolution
Zoomalternate image
View 2


Click for:PE6074 Datasheet
Click for:PE6074 RoHS Cert
Click for:PE6074 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE6084

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesSMA
Connector GenderFemale
Minimum FrequencyDC
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power1 Watt


1 Watt RF Load With Chain Up to 18 GHz With SMA Female Input Passivated Stainless Steel

PE6074 1 Watts RF load (also known as termination or dummy load) has a SMA connector that is female. This Pasternack 1 watt SMA female load / termination is rated for a maximum frequency of 18 GHz. Our SMA female termination load is a rf load termination with a 50 Ohm impedance.

This SMA load / coax terminator is manufactured with chain and passivated stainless steel body. Pasternack 50 Ohm SMA coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6074 1 watt SMA female load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our SMA female 1 watt termination load will ship worldwide the same day as purchased.
