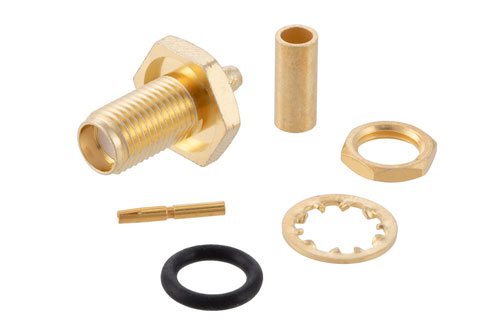

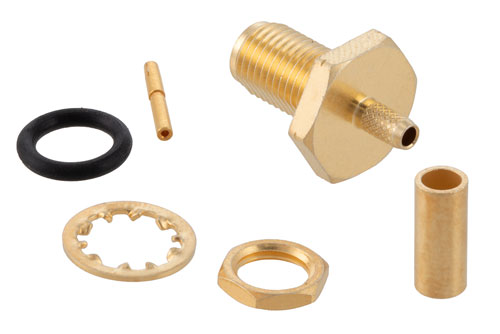

PE45953 SMA female bulkhead coaxial connector has an interface type of SMA female RG174 and RG174NM and a 50 Ohm impedance. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack's SMA female bulkhead connector uses crimp/solder as an attachment method. Our female SMA coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack SMA female bulkhead coaxial connector has a teflon dielectric type and a VSWR of 1.3:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack's SMA coaxial connector has a beryllium copper body with gold plating. Our PE45953 SMA connector uses beryllium copper inner and outer contacts. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE45953 features a 3 µin minimum body plating specification. The PE45953 SMA bulkhead non-magnetic connector operates at a temperature range of -65 to 165 deg C. This SMA connector has a beryllium copper inner contact plating and a gold outer contact plating. The Pasternack non-magnetic SMA female connector has a maximum operating voltage of 335 Vrms.
This Pasternack non-magnetic female SMA bulkhead connector will ship the same business day as purchased. Our bulkhead SMA female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
