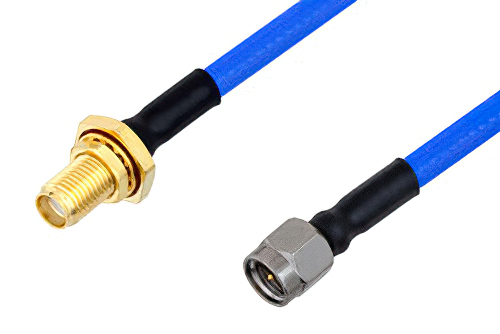

SMA Female Bulkhead to SMA Male Cable Using PE-141FLEX Coax, RoHS

Product ID: PE3CA1038
SMA Female Bulkhead to SMA Male Cable Using PE-141FLEX Coax, RoHS

Image Views:  SMA Female Bulkhead to SMA Male Cable Using PE-141FLEX Coax, RoHS high resolution
Zoom


Click for:PE3CA1038 Datasheet
Click for:PE3CA1038 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.50 cm.100 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141EAM
RF Cable TypePE-141FLEX
RF Cable Impedance50


SMA Female Bulkhead to SMA Male Cable Using PE-141FLEX Coax, RoHS

PE3CA1038 is a SMA female bulkhead to SMA male cable using PE-141FLEX coax. This Pasternack SMA female bulkhead to SMA male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our female SMA bulkhead to male SMA cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1038 SMA female bulkhead to SMA male cable assembly is constructed with PE-141FLEX coax and the maximum VSWR is 1.4:1.
