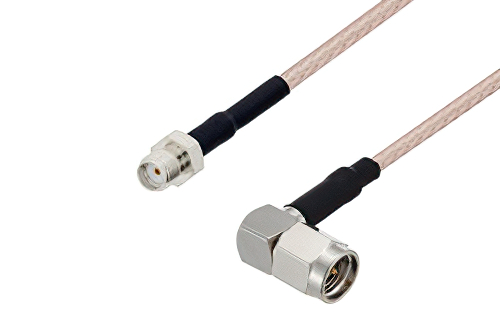

SMA Female to SMA Male Right Angle Cable Using RG316-DS Coax with HeatShrink

Product ID: PE3W07377/HS

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4416	RG316-DS	PE4409	KitBOM Datasheet

SMA Female to SMA Male Right Angle Cable Using RG316-DS Coax with HeatShrink

PE3W07377/HS is a SMA female to SMA male right angle cable using RG316-DS coax. This Pasternack SMA female to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our female SMA to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07377/HS SMA female to SMA male right angle cable assembly is constructed with RG316-DS coax.
