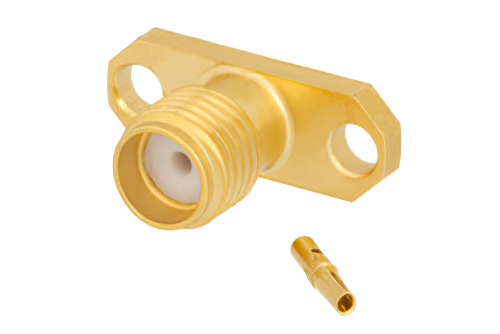

PE4547 SMA female 2 hole flange mount coaxial connector has an interface type of SMA female, which is compatible with PE-047SR, PE-SR047AL and PE-SR047FL cables, and has an impedance of 50 Ohms. Pasternack’s SMA female 2 hole flange mount connector uses solder/solder as an attachment method. Our female SMA coaxial connector provides a maximum frequency of 10 GHz. This SMA female RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack SMA female 2 hole flange mount coaxial connector has a PTFE dielectric type and a VSWR of 1.5:1. Pasternack’s SMA coaxial connector has a stainless steel body with gold over nickel plating. Our PE4547 SMA connector uses a beryllium copper inner contact and a stainless steel outer contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4547 RF connector features a MIL-G-45204 body plating specification. The PE4547 SMA 2 hole flange mount connector operates at a temperature range of -65 to 165 deg C. This SMA connector has a gold over nickel inner contact plating and a gold outer contact plating. The Pasternack SMA female connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms.
This Pasternack female SMA 2 hole flange mount connector will ship the same business day as purchased. Our 2 hole flange mount SMA female coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
