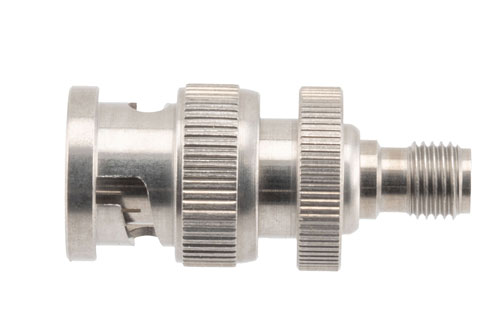

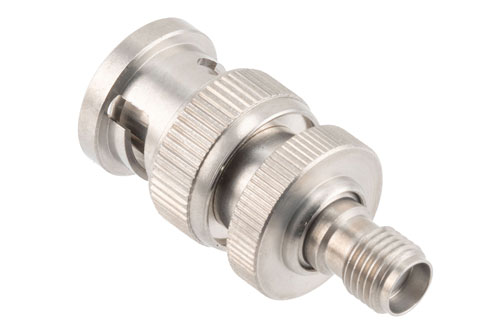

The SMA to BNC adapter PE91795 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.3:1. This RF adapter has a female to male gender configuration, which provides easier connections in tighter spaces. Our SMA to BNC adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 12 GHz. This between series RF adapter has a dielectric withstanding voltage of 1,500 Vrms.
This SMA female to BNC male adapter is one of the many RF components that ship the same business day as they are ordered. The PE91795 female SMA to male BNC adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. This RF adapter has a 1.24-inch length, 0.571-inch width, and 0.02 lbs weight.
The PE91795 adapter from Pasternack is made from a passivated stainless steel connector body and has a phosphor bronze center contact. Our SMA female to BNC male radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. Additional dimensions and specifications for this between series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of SMA to BNC radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 12 GHz RF adapter that meets your requirements.
