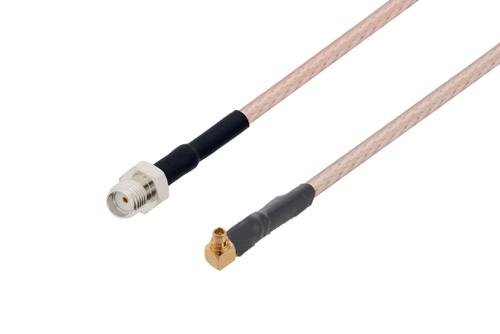

Radio frequency assembly SMA female to MMCX plug right angle cable using RG316-DS coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA female to MMCX plug right angle cable using RG316-DS coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to MMCX cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA cable connection on one end and a right angle MMCX cable connection on the other. Our SMA to right angle MMCX cable assembly has a female gender on end 1 and a plug on end 2. PE3C0525/HS can also be known as a SMA jack to right angle MMCX male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.57-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C0525/HS RF cable has a FEP jacket of 0.114-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 155 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 69.5% and a minimum RF shielding of 85 dB. Our SMA female to right angle MMCX plug cable has a maximum VSWR of 1.4:1.
SMA jack to MMCX male cable assembly PE3C0525/HS is built with RG316-DS which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to right angle MMCX cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C0525/HS can also be used in the other direction and will be a right angle MMCX plug to SMA female cable assembly if the opposite connectivity is required.
SMA jack to MMCX right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to MMCX cable assembly for quick shipment worldwide. Variations of SMA and MMCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to MMCX RF cable assembly as per your requirements.
