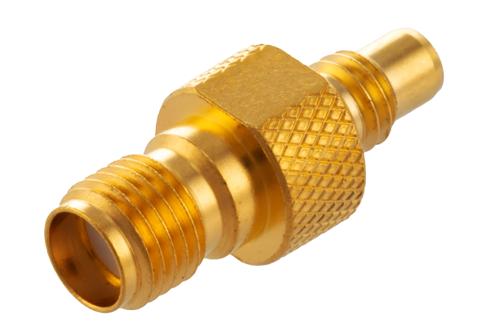

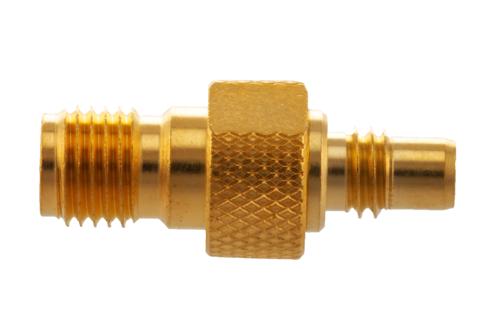

The SMA to SMC adapter PE910034 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance. This RF adapter has a female to female gender configuration, which provides easier connections in tighter spaces. Our SMA to SMC adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 10 GHz. This RF adapter has a dielectric withstanding voltage of 750 Vrms.
This SMA female to SMC female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910034 female SMA to female SMC adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Pasternack’s PE910034 radio frequency adapter has a typical VSWR of 1.2:1. Our adapter has a maximum insertion loss of 0.316 dB. This RF adapter has a 0.821-inch length, 0.541-inch width, and 0.01 lbs weight.
The PE910034 adapter from Pasternack is made from a brass connector body and has a beryllium copper center contact. Our SMA female to SMC female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of SMA to SMC radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 10 GHz RF adapter that meets your requirements.
