UMCX 2.5 Plug to SMA Female Cable Assemblies

Check out our new RF calculators & conversion tools...

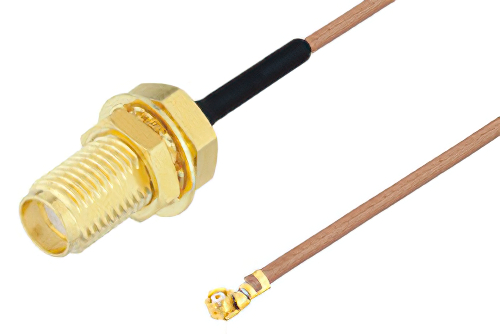

SMA Female Bulkhead to UMCX 2.5 Plug Cable 9 Inch Length Using RG178 Coax, RoHS

Product ID: PE3CA1003-9
SMA Female Bulkhead to UMCX 2.5 Plug Cable 9 Inch Length Using RG178 Coax, RoHS

Image Views:  SMA Female Bulkhead to UMCX 2.5 Plug Cable 9 Inch Length Using RG178 Coax, RoHS high resolution
Zoom


Click for:PE3CA1003-9 Datasheet
Click for:PE3CA1003-9 RoHS Cert
Available Quantity: 62
Standard Lengths
6 in.12 in.
Pricing Table
QUANTITYPRICE
1-24$12.93
25-49$12.28
50-99$11.64
100-249$11.12
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2UMCX 2.5
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50


SMA Female Bulkhead to UMCX 2.5 Plug Cable 9 Inch Length Using RG178 Coax, RoHS

PE3CA1003-9 is a SMA female bulkhead to UMCX 2.5 plug cable using RG178 coax. This Pasternack SMA female bulkhead to UMCX 2.5 plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm UMCX 2.5 for connector 2.

Our female SMA bulkhead to plug UMCX 2.5 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1003-9 SMA female bulkhead to UMCX 2.5 plug cable assembly is constructed with RG178 coax and the maximum VSWR is 1.5:1.
