Straight Cut Lead Sexless to SMA Female Cable Assemblies

Check out our new RF calculators & conversion tools...

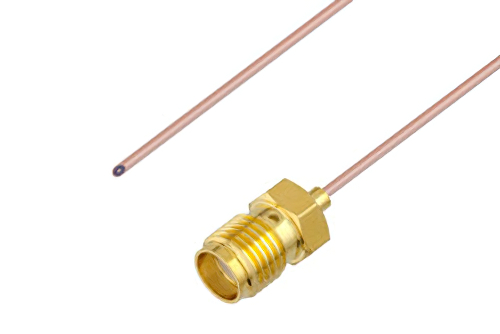

Pigtail Test Probe Cable SMA Female to Straight Cut Lead Using PE-034SR Coax, RoHS

Product ID: PE3CA1102
Pigtail Test Probe Cable SMA Female to Straight Cut Lead Using PE-034SR Coax, RoHS

Image Views:  Pigtail Test Probe Cable SMA Female to Straight Cut Lead Using PE-034SR Coax, RoHS high resolution
Zoom


Click for:PE3CA1102 Datasheet
Click for:PE3CA1102 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
3 in.6 in.9 in.12 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2Straight Cut Lead
Connector Gender 2Sexless
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-034SR
RF Cable TypePE-034SR
RF Cable Impedance50


Pigtail Test Probe Cable SMA Female to Flush Cut Lead Using PE-034SR Coax, RoHS

PE3CA1102 is a SMA female to Straight Cut Lead sexless cable using PE-034SR coax. This Pasternack SMA female to Straight Cut Lead sexless cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm Straight Cut Lead for connector 2.

Our female SMA to sexless Straight Cut Lead cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3CA1102 SMA female to Straight Cut Lead sexless cable assembly is constructed with PE-034SR coax and the maximum VSWR is 1.35:1.
