SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch

Product ID: PE45458
SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch

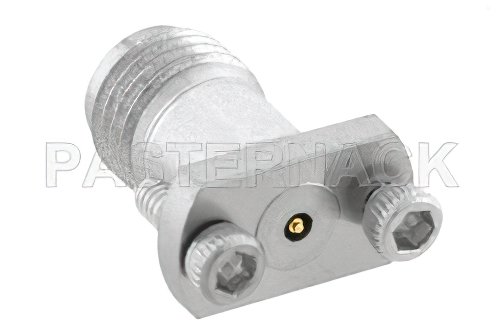

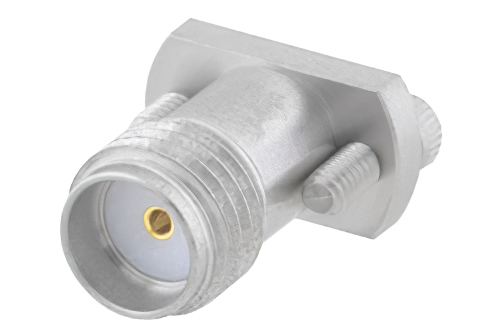

Image Views:  SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch high resolution
Zoomalternate image
View 2


Click for:PE45458 Datasheet
Click for:PE45458 RoHS Cert
Click for:PE45458 REACH Cert
Available Quantity: 23
Pricing Table
QUANTITYPRICE
1-24$35.15
25-49$33.39
50-99$31.64
100-249$30.23
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMA
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency26.5 GHz


SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch

PE45458 SMA female pcb connector has an interface type of vertical launch and a 50 Ohm impedance. Pasternack SMA female connector uses shield/contact clamp as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 26.5 GHz.

The Pasternack SMA female pcb connector has a ptfe dielectric type and a VSWR of 1.3. The Pasternack SMA pcb connector has a passivated stainless steel body. Our PE45458 SMA connector uses beryllium copper contact. This SMA female pcb RF connector is RoHS and REACH compliant.

This Pasternack female SMA connector will ship the same day as purchased. Our SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
