SMA to 7/16 DIN Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

Low PIM SMA Male to 7/16 DIN Male Adapter, Low VSWR

Product ID: PE91043

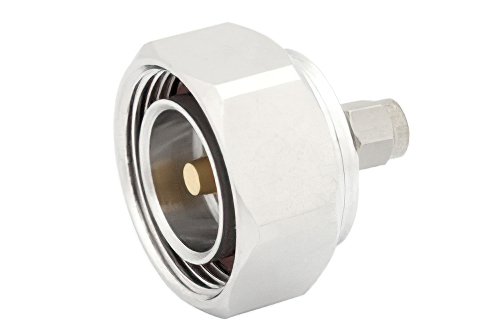

Low PIM SMA Male to 7/16 DIN Male Adapter, Low VSWR

Image Views:  Low PIM SMA Male to 7/16 DIN Male Adapter, Low VSWR high resolution
Zoom


Click for:PE91043 Datasheet
Click for:PE91043 RoHS Cert
Click for:PE91043 REACH Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-24$110.39
25-49$102.66
50-99$94.94
100-249$88.31
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max7.5 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Tri-Metal
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Tri-Metal


Low PIM SMA Male to 7/16 DIN Male Adapter, Low VSWR

SMA adapter PE91043 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to 7/16 DIN adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 7.5 GHz.

SMA male to 7/16 DIN male adapter is one of the many RF components that ship same day as they are ordered. PE91043 male SMA to male 7/16 DIN adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our male SMA to male 7/16 DIN adapter PE91043 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This low VSWR SMA to 7/16 DIN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
