BNC Female to SMA Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

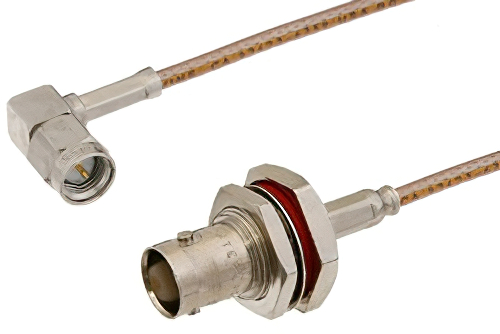

SMA Male Right Angle to BNC Female Bulkhead Cable Using RG316 Coax

Product ID: PE3681
SMA Male Right Angle to BNC Female Bulkhead Cable Using RG316 Coax

Image Views:  SMA Male Right Angle to BNC Female Bulkhead Cable Using RG316 Coax high resolution
Zoom


Click for:PE3681 Datasheet
Click for:PE3681 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


SMA Male Right Angle to BNC Female Bulkhead Cable Using RG316 Coax

PE3681 is a SMA male right angle to BNC female bulkhead cable using RG316 coax. This Pasternack SMA male right angle to BNC female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2. SMA right angle to BNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to female BNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3681 SMA male right angle to BNC female bulkhead cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
