Reverse Polarity SMA Male to BNC Male Cable Using RG174 Coax

Product ID: PE3C3332
Reverse Polarity SMA Male to BNC Male Cable Using RG174 Coax

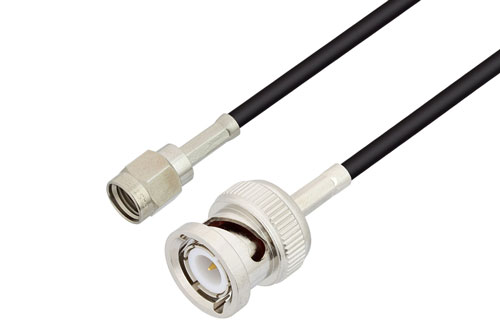

Image Views:  Reverse Polarity SMA Male to BNC Male Cable Using RG174 Coax high resolution
Zoom


Click for:PE3C3332 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


Reverse Polarity SMA Male to BNC Male Cable Using RG174 Coax

PE3C3332 is a reverse polarity SMA male to BNC male cable using RG174 coax. This Pasternack reverse polarity SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our reverse polarity male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3332 SMA reverse polarity male to BNC male cable assembly is constructed with RG174 coax and the maximum VSWR is 1.5:1.
