SMA Male to BNC Male Cable Using 75 Ohm RG179 Coax, RoHS

Product ID: PE3626LF

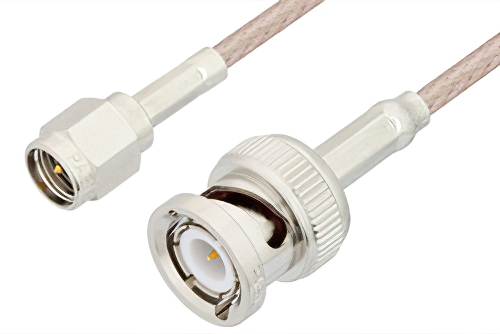

SMA Male to BNC Male Cable Using 75 Ohm RG179 Coax, RoHS

Image Views:  SMA Male to BNC Male Cable Using 75 Ohm RG179 Coax, RoHS high resolution
Zoom


Click for:PE3626LF Datasheet
Click for:PE3626LF RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE3C3321LF
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG179B/U
RF Cable TypeRG179
RF Cable Impedance75


SMA Male to BNC Male Cable Using 75 Ohm RG179 Coax, RoHS

PE3626LF is a SMA male to BNC male cable using RG179 coax. This Pasternack SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our male SMA to male BNC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3626LF SMA male to BNC male cable assembly is constructed with RG179 coax and the maximum VSWR is 1.4:1.
