Reverse Polarity SMA Male to BNC Male Cable Using RG188 Coax

Product ID: PE35215

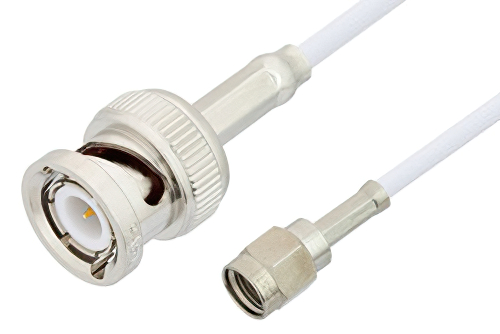

Reverse Polarity SMA Male to BNC Male Cable Using RG188 Coax

Image Views:  Reverse Polarity SMA Male to BNC Male Cable Using RG188 Coax high resolution
Zoom


Click for:PE35215 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3412
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


Reverse Polarity SMA Male to BNC Male Cable Using RG188 Coax

PE35215 is a reverse polarity SMA male to BNC male cable using RG188 coax. This Pasternack reverse polarity SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our reverse polarity male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35215 SMA reverse polarity male to BNC male cable assembly is constructed with RG188 coax.
