SMA Male Right Angle to BNC Male Cable Using RG188 Coax

Product ID: PE3756
SMA Male Right Angle to BNC Male Cable Using RG188 Coax

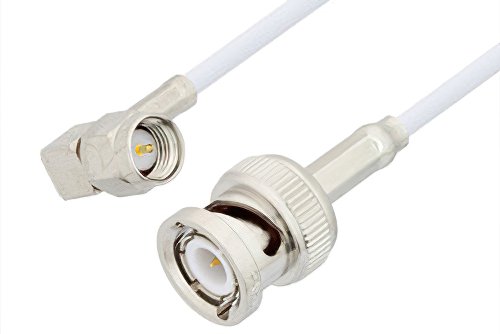

Image Views:  SMA Male Right Angle to BNC Male Cable Using RG188 Coax high resolution
Zoom


Click for:PE3756 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3437
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


SMA Male Right Angle to BNC Male Cable Using RG188 Coax

PE3756 is a SMA male right angle to BNC male cable using RG188 coax. This Pasternack SMA male right angle to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2. SMA right angle to BNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3756 SMA male right angle to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
