BNC Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

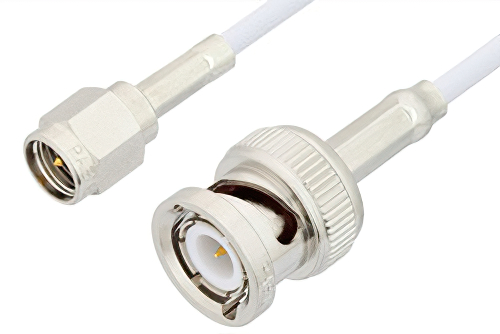

SMA Male to BNC Male Cable 48 Inch Length Using RG188 Coax, RoHS

Product ID: PE3885LF-48
SMA Male to BNC Male Cable 48 Inch Length Using RG188 Coax, RoHS

Image Views:  SMA Male to BNC Male Cable 48 Inch Length Using RG188 Coax, RoHS high resolution
Zoom


Click for:PE3885LF-48 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C2035LF-48

Standard Lengths
12 in.24 in.36 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


SMA Male to BNC Male Cable 48 Inch Length Using RG188 Coax, RoHS

PE3885LF-48 is a SMA male to BNC male cable using RG188 coax. This Pasternack SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3885LF-48 SMA male to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
