SMA Male to BNC Male Cable Using RG188 Coax

Product ID: PE3C2035
SMA Male to BNC Male Cable Using RG188 Coax

Image Views:  SMA Male to BNC Male Cable Using RG188 Coax high resolution
Zoom


Click for:PE3C2035 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50 Ohm

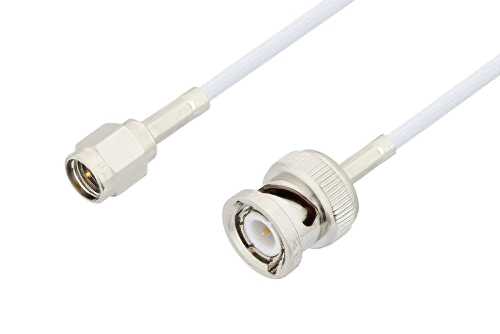

SMA Male to BNC Male Cable Using RG188 Coax

PE3C2035 is a SMA male to BNC male cable using RG188 coax. This Pasternack SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C2035 SMA male to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
