BNC Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male to BNC Male Cable Using RG316-DS Coax

Product ID: PE3359
SMA Male to BNC Male Cable Using RG316-DS Coax

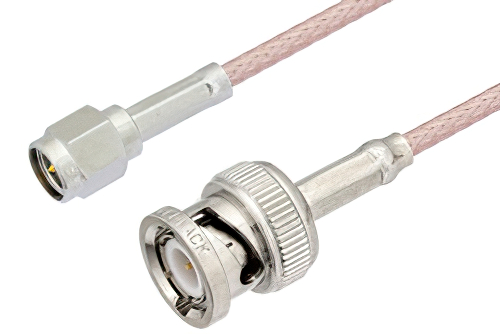

Image Views:  SMA Male to BNC Male Cable Using RG316-DS Coax high resolution
Zoom


Click for:PE3359 Datasheet
DISCONTINUED PRODUCT
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50


SMA Male to BNC Male Cable Using RG316-DS Coax

PE3359 is a SMA male to BNC male cable using RG316-DS coax. This Pasternack SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3359 SMA male to BNC male cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
