BNC Male to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

Reverse Polarity SMA Male to BNC Male Cable Using RG316 Coax

Product ID: PE35219

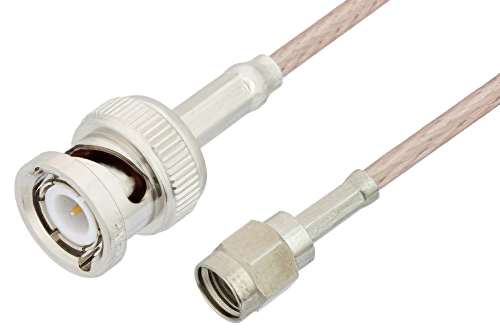

Reverse Polarity SMA Male to BNC Male Cable Using RG316 Coax

Image Views:  Reverse Polarity SMA Male to BNC Male Cable Using RG316 Coax high resolution
Zoom


Click for:PE35219 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3413
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


Reverse Polarity SMA Male to BNC Male Cable Using RG316 Coax

PE35219 is a reverse polarity SMA male to BNC male cable using RG316 coax. This Pasternack reverse polarity SMA male to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2.

Our reverse polarity male SMA to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35219 SMA reverse polarity male to BNC male cable assembly is constructed with RG316 coax.
