SMA Male Right Angle to BNC Male Cable Using RG316 Coax, RoHS

Product ID: PE3811LF
SMA Male Right Angle to BNC Male Cable Using RG316 Coax, RoHS

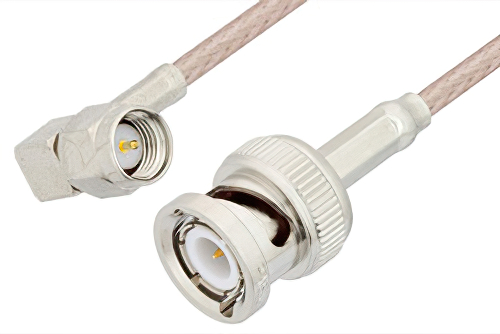

Image Views:  SMA Male Right Angle to BNC Male Cable Using RG316 Coax, RoHS high resolution
Zoom


Click for:PE3811LF Datasheet
Click for:PE3811LF RoHS Cert
DISCONTINUED PRODUCT
Replaced By: PE3C3350LF
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


SMA Male Right Angle to BNC Male Cable Using RG316 Coax, RoHS

PE3811LF is a SMA male right angle to BNC male cable using RG316 coax. This Pasternack SMA male right angle to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2. SMA right angle to BNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3811LF SMA male right angle to BNC male cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
