SMA Male Right Angle to BNC Male Cable Using RG400 Coax

Product ID: PE3642
SMA Male Right Angle to BNC Male Cable Using RG400 Coax

Image Views:  SMA Male Right Angle to BNC Male Cable Using RG400 Coax high resolution
Zoom


Click for:PE3642 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG400/U
RF Cable TypeRG400
RF Cable Impedance50


SMA Male Right Angle to BNC Male Cable Using RG400 Coax

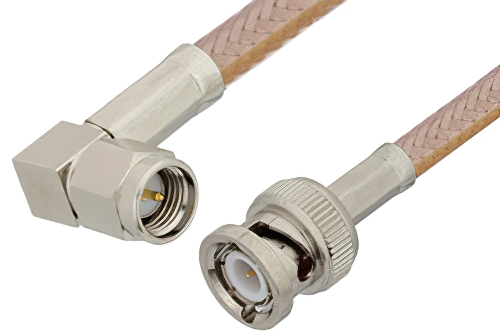

PE3642 is a SMA male right angle to BNC male cable using RG400 coax. This Pasternack SMA male right angle to BNC male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm BNC for connector 2. SMA right angle to BNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3642 SMA male right angle to BNC male cable assembly is constructed with RG400 coax and the maximum VSWR is 1.4:1.
