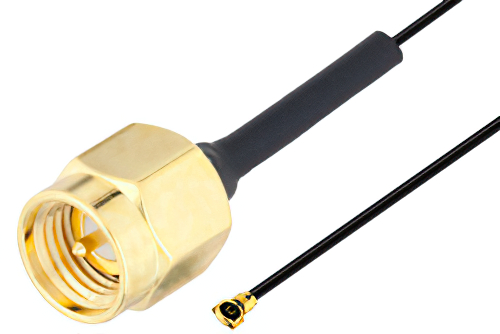

SMA Male to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

Product ID: PE3CA1030

Length

Standard Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	HMCX32 1.2
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-81mm
RF Cable Type	0.81mm
RF Cable Impedance	50

Description

SMA Male to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

PE3CA1030 is a SMA male to HMCX32 1.2 plug cable using 0.81mm coax. This Pasternack SMA male to HMCX32 1.2 plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm HMCX32 1.2 for connector 2.

Our male SMA to plug HMCX32 1.2 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1030 SMA male to HMCX32 1.2 plug cable assembly is constructed with 0.81mm coax and the maximum VSWR is 1.35:1.
