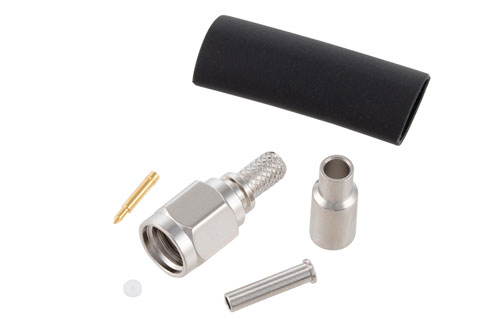

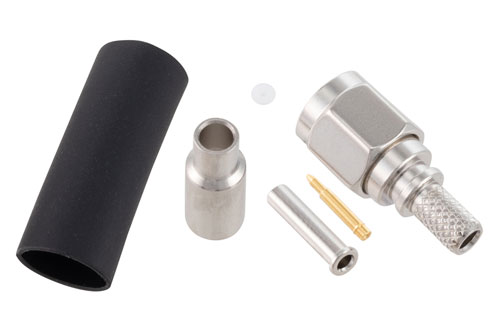

SC-100-SM SMA male coaxial connector has an interface type of SMA male LMR-100, PE-C100, RG174, RG188, and RG316 and a 50 Ohm impedance. Pasternack's SMA male connector uses crimp/solder as an attachment method. Our male SMA coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack SMA male coaxial connector has a PTFE dielectric type. Pasternack's SMA coaxial connector has a brass body with nickel plating. Our SC-100-SM SMA connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality SC-100-SM features a 200 µin body plating specification. The Pasternack SC-100-SM SMA connector operates at a temperature range of -40 to 125 deg C. This threaded male coaxial RF connector has a maximum insertion loss of 0.25 dB. The Pasternack SMA male connector has a maximum operating voltage of 375 Vrms and a dielectric withstanding voltage of 500 Vrms.
This Pasternack male SMA connector will ship the same business day as purchased. Our SMA male connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
