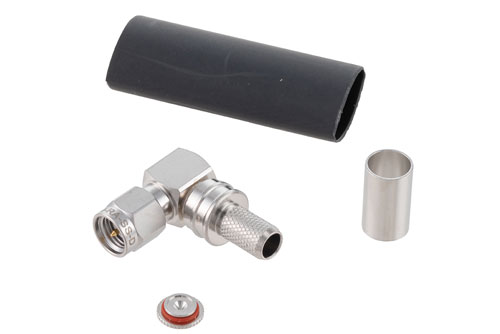

TC-240-SM-RA-SS-D SMA male right angle coaxial connector has an interface type of SMA male LMR-240 and PE-C240 and a 50 Ohm impedance. Pasternack's SMA male connector uses crimp/solder as an attachment method. Our male SMA right angle coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack right angle SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's SMA coaxial connector has a passivated stainless steel body. Our TC-240-SM-RA-SS-D SMA right angle connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from passivated stainless steel material and has a contact life of 500 cycles or more. The Pasternack TC-240-SM-RA-SS-D SMA connector operates at a temperature range of -40 to 125 deg C. This threaded male coaxial RF connector has a maximum insertion loss of 0.25 dB. The Pasternack SMA male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,000 Vrms.
This Pasternack right angle male SMA connector will ship the same business day as purchased. Our SMA right angle male connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
