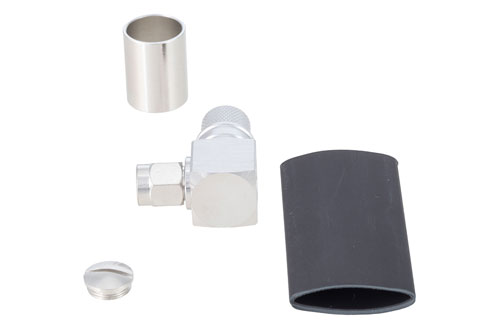

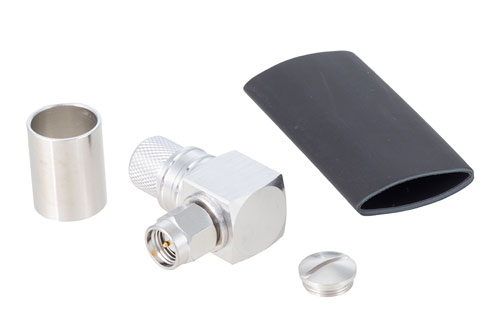

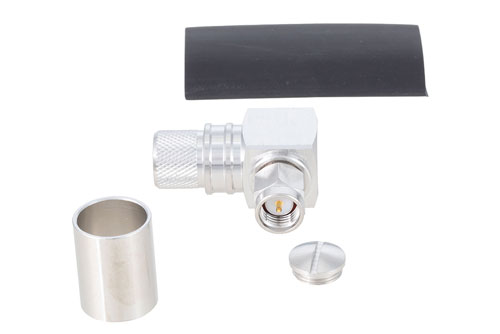

PE5129 SMA male right angle coaxial connector has an interface type of SMA male which is compatible with LMR-400, LR-LW400, TCOM-400, LMR-400-LLPX, PE-B400, PE-B405, PE-C400 and LMR-400-FR has an impedance of 50 Ohm. Pasternack’s SMA male connector uses crimp as an attachment method. Our male SMA right angle coaxial connector provides a maximum frequency of 6 GHz. This SMA male RF connector is stocked to be readily available for same business day shipment.
The Pasternack right angle SMA male coaxial connector has a PTFE dielectric type. Pasternack’s SMA coaxial connector has a brass body with tri-metal plating. Our PE5129 SMA right angle connector uses gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5129 SMA connector operates at a temperature range of -40 to 155 deg C. This right angle SMA connector has a gold inner contact plating. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our right angle SMA male connector has a length of 1.35 inches, a width of 0.91 inches and a weight of 0.047 lbs.
This Pasternack right angle male SMA connector will ship the same business day as purchased. Our SMA right angle male connector is part of over one million RF, microwave and millimeter wave components in stock for local, domestic and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
