MMCX Plug to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

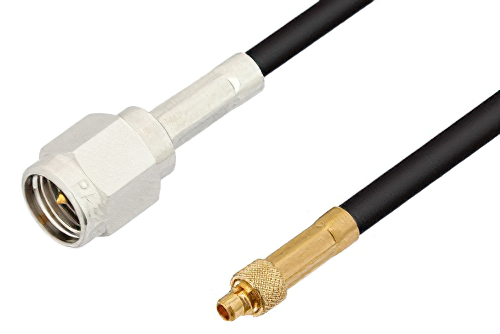

SMA Male to MMCX Plug Cable Using RG174 Coax

Product ID: PE34069
SMA Male to MMCX Plug Cable Using RG174 Coax

Image Views:  SMA Male to MMCX Plug Cable Using RG174 Coax high resolution
Zoom


Click for:PE34069 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2MMCX
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50


SMA Male to MMCX Plug Cable Using RG174 Coax

PE34069 is a SMA male to MMCX plug cable using RG174 coax. This Pasternack SMA male to MMCX plug cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2.

Our male SMA to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34069 SMA male to MMCX plug cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
