MMCX Plug Right Angle to SMA Male Cable Assemblies

Check out our new RF calculators & conversion tools...

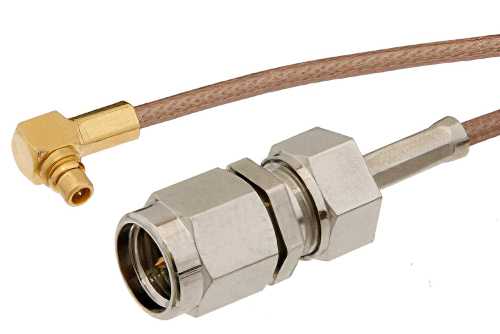

SMA Male to MMCX Plug Right Angle Cable 24 Inch Length Using RG178 Coax

Product ID: PE34777-24
SMA Male to MMCX Plug Right Angle Cable 24 Inch Length Using RG178 Coax

Image Views:  SMA Male to MMCX Plug Right Angle Cable 24 Inch Length Using RG178 Coax high resolution
Zoom


Click for:PE34777-24 Datasheet
Click for:PE34777-24 RoHS Cert
Available Quantity: 3,746
Standard Lengths
12 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$64.66
25-49$61.43
50-99$58.19
100-249$55.61
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2MMCX
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50


SMA Male to MMCX Plug Right Angle Cable 24 Inch Length Using RG178 Coax

PE34777-24 is a SMA male to MMCX plug right angle cable using RG178 coax. This Pasternack SMA male to MMCX plug right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm MMCX for connector 2. SMA to MMCX right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to plug MMCX right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34777-24 SMA male to MMCX plug right angle cable assembly is constructed with RG178 coax and the maximum VSWR is 1.4:1.
