Type N to SMA Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

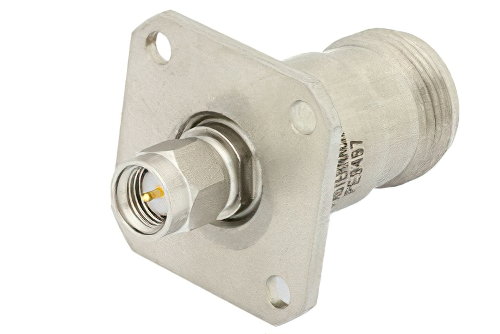

Precision SMA Male to N Female 4 Hole Flange Mount Adapter

Product ID: PE9497
Precision SMA Male to N Female 4 Hole Flange Mount Adapter

Image Views:  Precision SMA Male to N Female 4 Hole Flange Mount Adapter high resolution
Zoom


Click for:PE9497 Datasheet
Click for:PE9497 RoHS Cert
Click for:PE9497 REACH Cert
Available Quantity: 17
Pricing Table
QUANTITYPRICE
1-24$157.36
25-49$146.34
50-99$135.33
100-249$125.89
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 24 Hole Flange


Precision SMA Male to N Female 4 Hole Flange Mount Adapter

SMA adapter PE9497 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to type N adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

SMA male to N type female adapter is one of the many RF components that ship same day as they are ordered. PE9497 male SMA to female type N adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our male SMA to female type N adapter PE9497 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to type N radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
