SMA Male Right Angle to Type N Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SMA Male Right Angle to N Male Right Angle Low Loss Test Cable Using PE-P300LL Coax, RoHS

Product ID: PE3C3249
SMA Male Right Angle to N Male Right Angle Low Loss Test Cable Using PE-P300LL Coax, RoHS

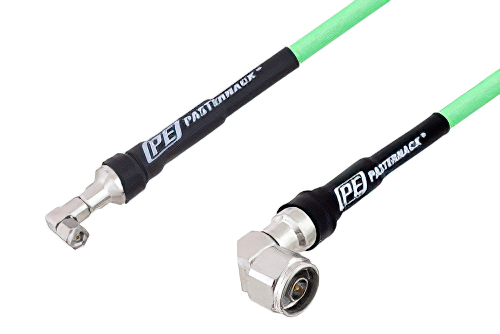

Image Views:  SMA Male Right Angle to N Male Right Angle Low Loss Test Cable Using PE-P300LL Coax, RoHS high resolution
Zoom


Click for:PE3C3249 Datasheet
Click for:PE3C3249 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P300LL
RF Cable TypePE-P300LL
RF Cable Impedance50


SMA Male Right Angle to N Male Right Angle Low Loss Test Cable Using PE-P300LL Coax, RoHS

PE3C3249 is a SMA male right angle to type N male right angle cable using PE-P300LL coax. This Pasternack SMA male right angle to type N male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm N type for connector 2. SMA right angle to N type right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male type N right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3249 SMA male right angle to type N male right angle cable assembly is constructed with PE-P300LL coax and the maximum VSWR is 1.4:1.
