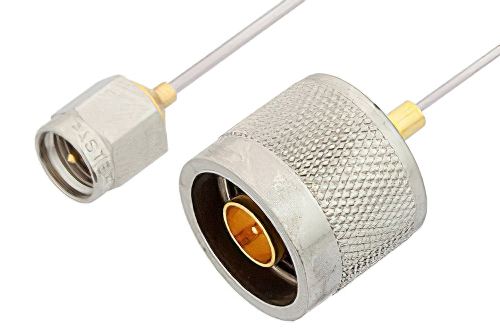

SMA Male to N Male Cable 24 Inch Length Using PE-SR047AL Coax

Product ID: PE34261LF-24

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$159.99
25-49$151.99
50-99$143.99
100-249$137.59
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Call for Availability
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR047AL
RF Cable TypePE-SR047AL
RF Cable Impedance50 Ohm
Length24 inches

Description

SMA Male to N Male Cable 24 Inch Length Using PE-SR047AL Coax

The PE34261LF-24 is a SMA male to N male semi-rigid cable designed for RF interconnects, offering 50 Ohm impedance and PE-SR047AL coax construction. It links SMA and N interfaces in RF and electronic system integration where stable cable routing and standard male connections are required. Brass connector bodies with gold plating and PTFE dielectric materials support reliable electrical performance across precision interconnect paths.

Pasternack RF coax cable assembly is built with SMA cable connection on one end and type N cable connection on the other. Our SMA to N type cable assemblies have a male gender on end 1 and male on end 2. This SMA to N type cable is a male to male coax assembly, PE34261LF-24, can also be known as a SMA plug to type N plug cable assembly and will be shipped same-day as it is purchased.

SMA plug to type N plug cable assembly PE34261LF-24 is built with PE-SR047AL which is a semi-rigid coax type. The Pasternack semi-rigid SMA cable assembly is manufactured with SMA to N type cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this SMA male to type N male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE34261LF-24 can also be used in the other direction and will be type N male to SMA male cable assembly if the opposite connectivity is required.

SMA plug to N type plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMA to type N cable assembly for quick shipment worldwide. Variations of SMA cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMA male to N male cable 24 inch length using PE-SR047AL coax.

Frequently Asked Questions

What is the PE34261LF-24 RF cable assembly?

The PE34261LF-24 is a SMA male to N male semi-rigid RF cable assembly built for 50 Ohm interconnect applications. It uses PE-SR047AL coax, straight connectors on both ends, and PTFE or Teflon dielectric materials in the cable and connectors. Engineers use it when a system must connect SMA equipment to N interface hardware with a formed cable path. This configuration supports lab integration, subsystem linking, and bench setups that need standard male RF terminations on both ends.

When would I use a SMA male to N male semi-rigid cable?

A SMA male to N male semi-rigid cable is used when one device has a SMA port and another has a N port. The PE34261LF-24 provides that between-series transition with 50 Ohm impedance and straight connector geometry for direct RF connections. Engineers often choose it for bench assemblies, prototype hardware, and electronic systems that need stable cable routing. Its semi-rigid PE-SR047AL construction is useful where the cable path should hold shape after installation.

Why choose a semi-rigid cable assembly instead of a flexible RF cable?

A semi-rigid cable assembly like the PE34261LF-24 is chosen when the installed cable path should remain fixed after routing. Its PE-SR047AL coax construction helps support repeatable positioning, while the 50 Ohm design aligns with common RF equipment interfaces. This matters in bench fixtures, prototypes, and compact electronic systems where movement can affect cable management. Engineers often use semi-rigid designs to create cleaner internal layouts between connected SMA and N ports.

Is the PE34261LF-24 suitable for general RF and electronics integration?

Yes, the PE34261LF-24 is suitable for general RF and electronics integration where SMA and N male interfaces must be connected. It combines 50 Ohm impedance, straight connector bodies, brass construction, and gold plating with PE-SR047AL semi-rigid coax. Those attributes make it practical for subsystem hookups, bench instruments, and development assemblies that use standard RF connectors. It is especially useful when engineers need a formed cable assembly rather than a more flexible routing solution.
