SMA Male to N Male Cable Using PE-SR401FL Coax

Product ID: PE34263

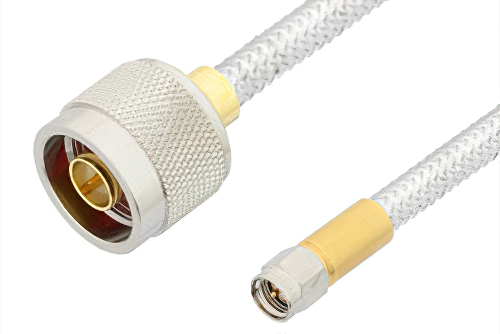

SMA Male to N Male Cable Using PE-SR401FL Coax

Image Views:  SMA Male to N Male Cable Using PE-SR401FL Coax high resolution
Zoom


Click for:PE34263 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR401FL
RF Cable TypePE-SR401FL
RF Cable Impedance50


SMA Male to N Male Cable Using PE-SR401FL Coax

PE34263 is a SMA male to type N male cable using PE-SR401FL coax. This Pasternack SMA male to N type male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm type N for connector 2.

Our male SMA to male type N cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE34263 SMA male to N type male cable assembly is constructed with PE-SR401FL coax.
