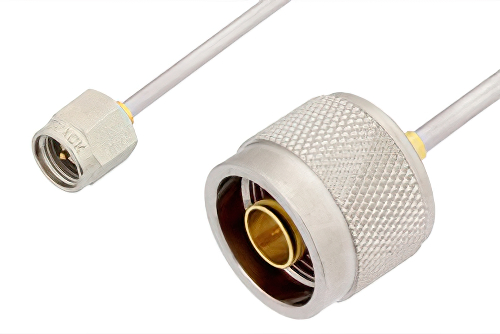

SMA Male to N Male Cable Using PE-SR405AL Coax

Product ID: PE34270LF
SMA Male to N Male Cable Using PE-SR405AL Coax

Image Views:  SMA Male to N Male Cable Using PE-SR405AL Coax high resolution
Zoom


Click for:PE34270LF Datasheet
Click for:PE34270LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR405AL
RF Cable TypePE-SR405AL
RF Cable Impedance50


SMA Male to N Male Cable Using PE-SR405AL Coax

PE34270LF is a SMA male to type N male cable using PE-SR405AL coax. This Pasternack SMA male to type N male cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm N type for connector 2.

Our male SMA to male type N cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE34270LF SMA male to N type male cable assembly is constructed with PE-SR405AL coax.
